Solar System 30kW 150kW 300kW Hybrid Solar Panel Kit System 30KW Complete solar system

Name: Solar System 30kW 150kW 300kW Hybrid Solar Panel Kit System 30KW Complete solar system
Brand: Hochiry
Price: 1 USD

Buy cheap Solar System 30kW 150kW 300kW Hybrid Solar Panel Kit System 30KW Complete solar system product

Brand Name : Hochiry

Certification : CE ROHS FCC

Place of Origin : CHINA

Product name : Solar Energy Systems

Battery Type : LiFePO4

Cycle life : 3000cycle/6000cycle

Protection : Built-in Smart BMS

Capacity : 5Kwh 10Kwh 20Kwh 30Kwh

Communication Port : RS232, RS485, CAN

Application : Solar Energy Storage Systems/Electric Power System

Contact Now

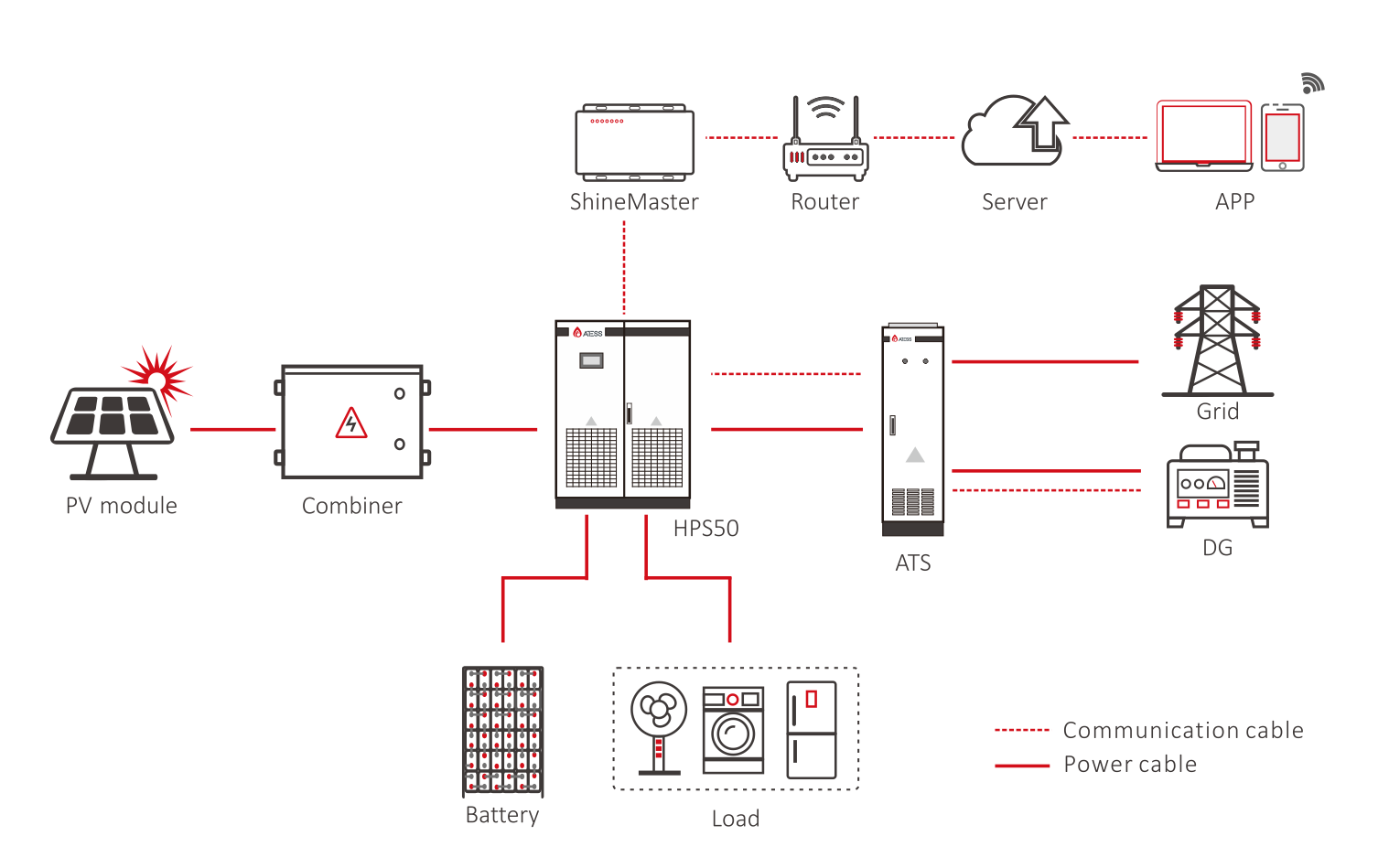

System Block Diagram

Solar System 30kW 150kW 300kW Hybrid Solar Panel Kit System 30KW Complete solar system

Components Included

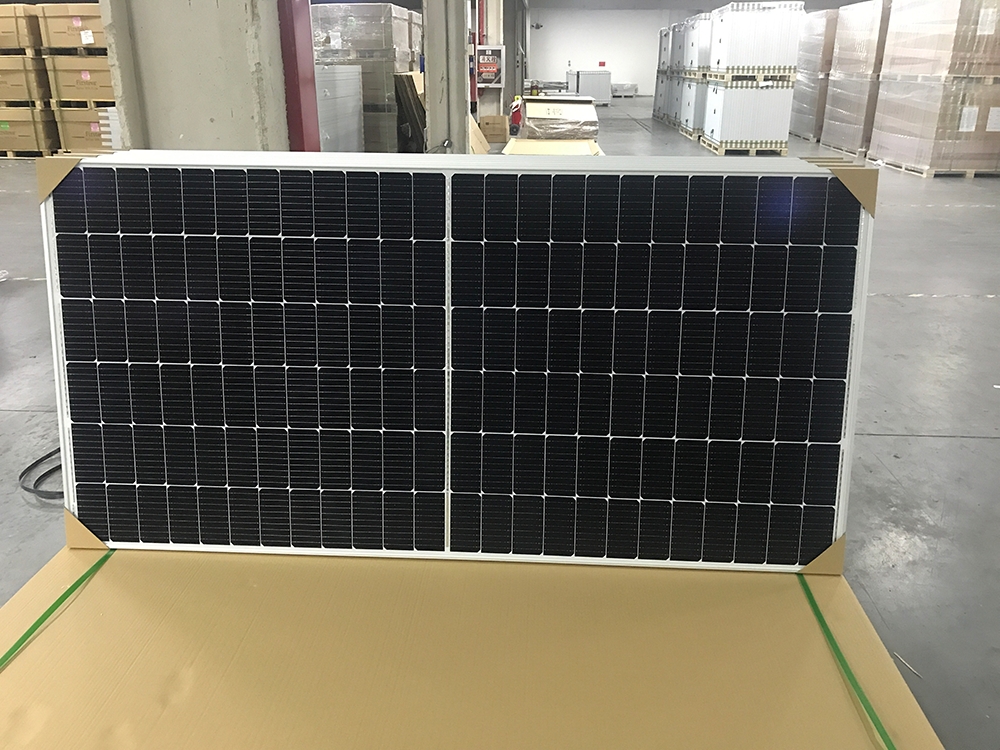

Half Cut Solar Panel

*Highest conversion efficiency of 21.5%
*0~+5W positive power tolerance
*PID Protection
*Higher performance under low light.
*MBB cell technology.
*Maximum system voltage:1500V *Junction box:IP68
*Frame:Aluminum alloy
*Cell amount:72*2pcs
Application level:Class A
*12Years product warranty,25 Years power output guarantee.



PV Combiner Box

*Lightning protection
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface
*Input fuse for over current protection *PV combiner box is an accessory for multiple PV string connection, it is with smart controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD

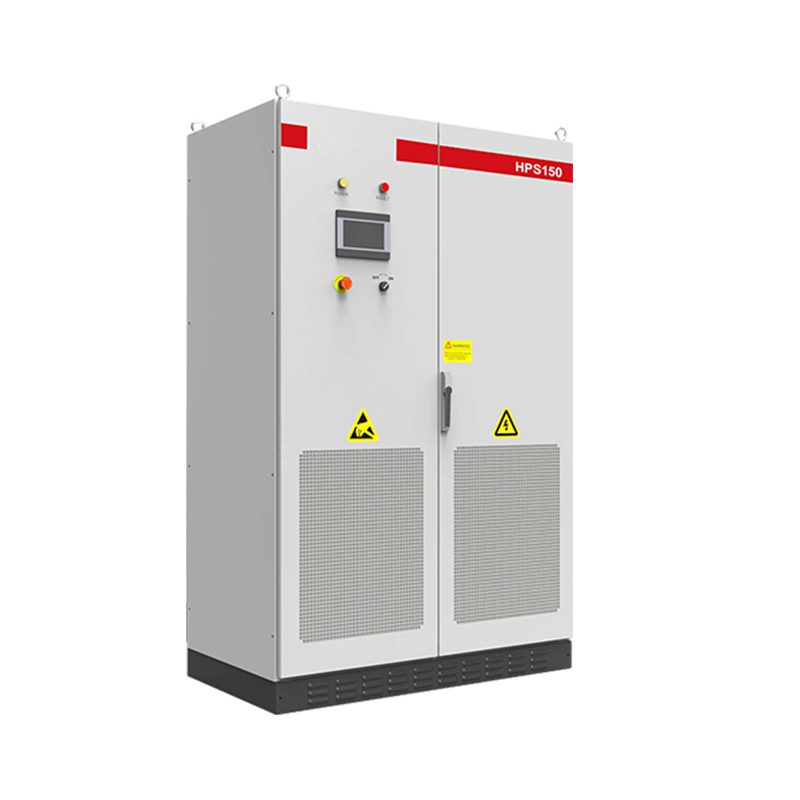

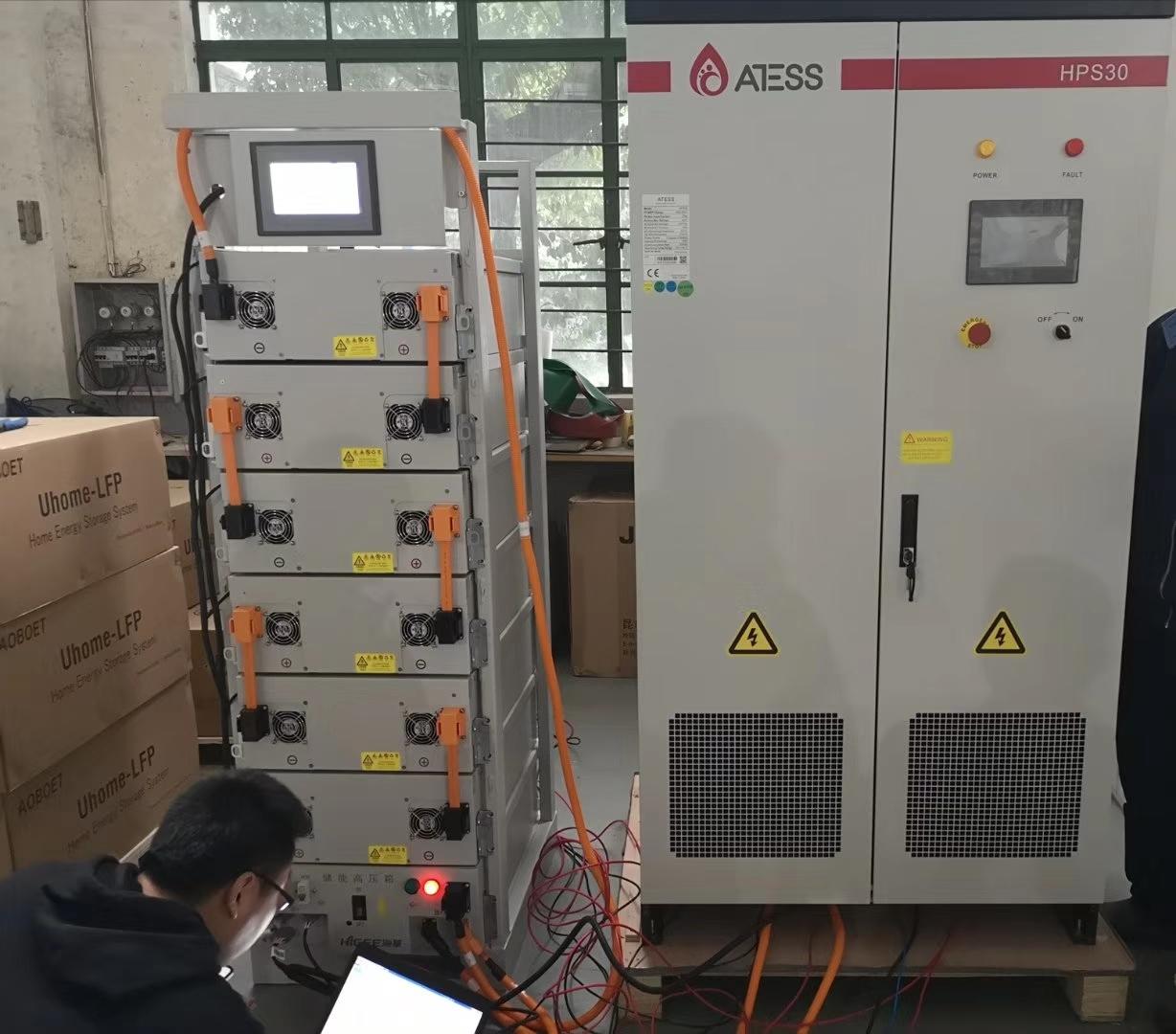

HPS30/50/100/120/150 Hybrid Inverter


* All in one hybrid inverter
*Peak-shaving, back-up, use the system however you want it
*Scalable design:Quadruple capacity by paralleling 4 units
*One inverter fails in parallel system, the other(s) takes over seamlessly. *Touchscreen LCD
*Uninterruptable power supply guaranteed
*Supports remote control of DG

ShineMaster Monitoring

*Up to 32 inverters connection
*Multi-function and high performance *Local webserver for easy configuration *Support external sensor to realize zero-export function.
*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the server via internet


Lithium-ion Battery
*Easy installation and maintenance
*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 6000 cycles *Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection level,inbuild lithium-ion battery and BMS.
*Standard 5Years Warranty.


Solar Accessories

*Black/Red color 4/6/10 mm2 PV cable
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty

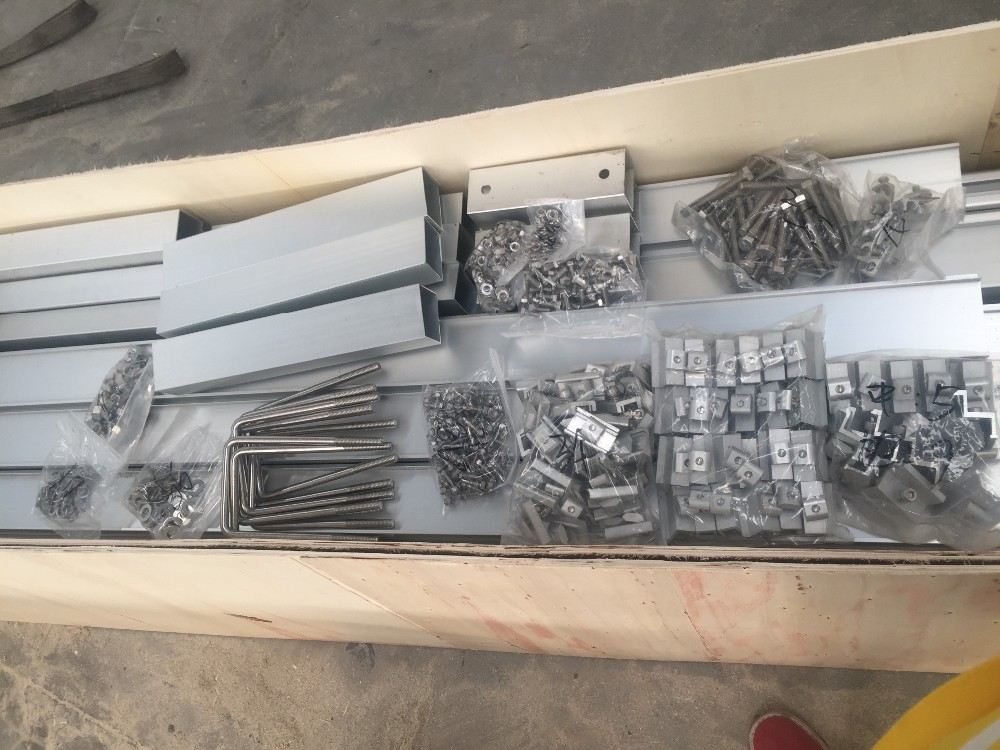

PV Mounting System

*Customized for roof&ground etc. *Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
 *Mid & End Clamps: 35,40,45,50mm
 *L Foot Asphalt Shingle Moount & Hanger Bolt Optional
 *Cable Clip & Tie Optional
 *Ground Clip & Lugs Optional
*25Years Warranty

Complete Set Hybrid Solar System Configuration
System Model	LS30KW-HY	LS50KW-HY	LS100KW-HY
Rated Capacity	30000W	50000W	100000W
Half Cut 550W Solar Panel	55pieces	96pieces	195pieces
Hybrid Inverter	HPS 30	HPS 50	HPS 100
PV Combiner Box	1piece,5 input 1output	1piece,8 input 1output	1piece,15 input 1output
LFP Battery Bank	76.8KWH	107.52KWH	230.4KWH
PV Cables	1000m	1600m	3000m
MC4 Connector	20pairs	50pairs	100pairs
Mounting System	Customized based on your installation site

System Model	LS120KW-HY	LS150KW-HY
Rated Capacity	120000W	150000W
Half Cut 550W Solar Panel	234pieces	280pieces
Hybrid Inverter	HPS 120	HPS 150
PV Combiner Box	1piece,18 input 1output	1piece,20input 1output
LFP Battery Bank	322.56KWH	430.08KWH
PV Cables	3600m	4000m
MC4 Connector	120pairs	140pairs
Mounting System	Customized based on your installation site

Packing&Shipping

1. Solar Panel

2. Solar Inverter

3. Bracket Mounting

4. Wooden Box

5. Professional Package

Note: Product dimensions and physical appearance in this data sheet are nominal.Lovsun Group reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

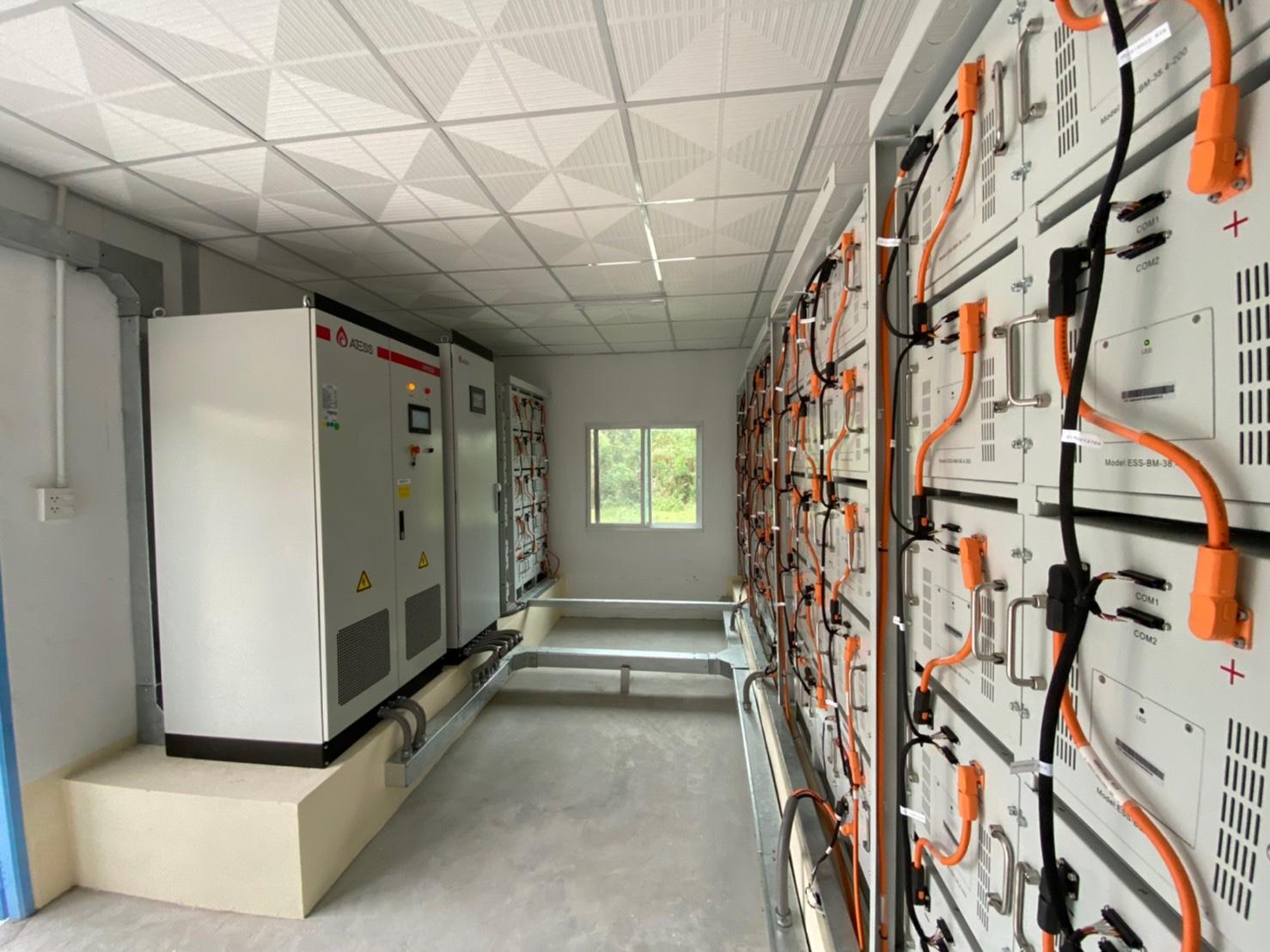

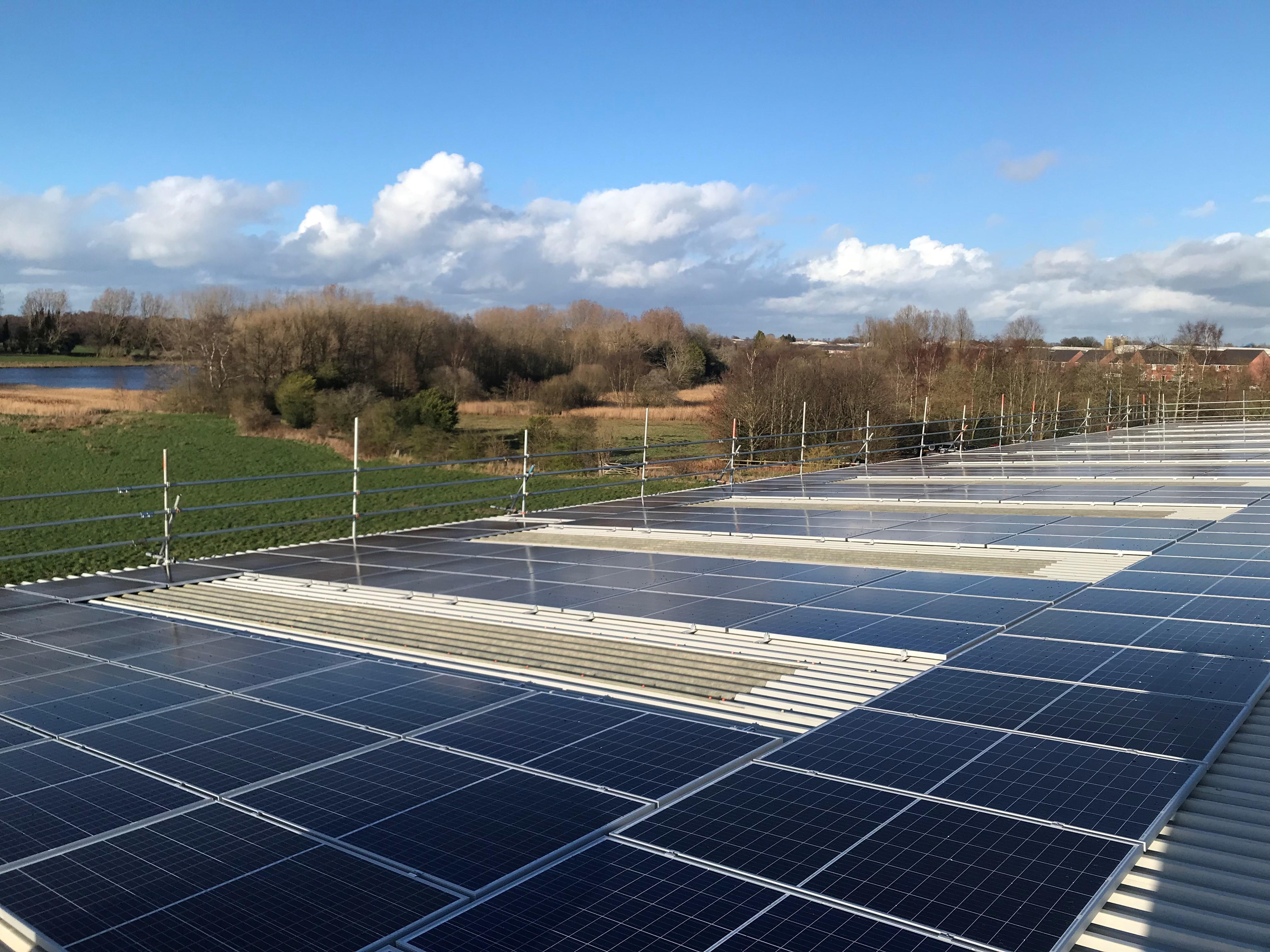

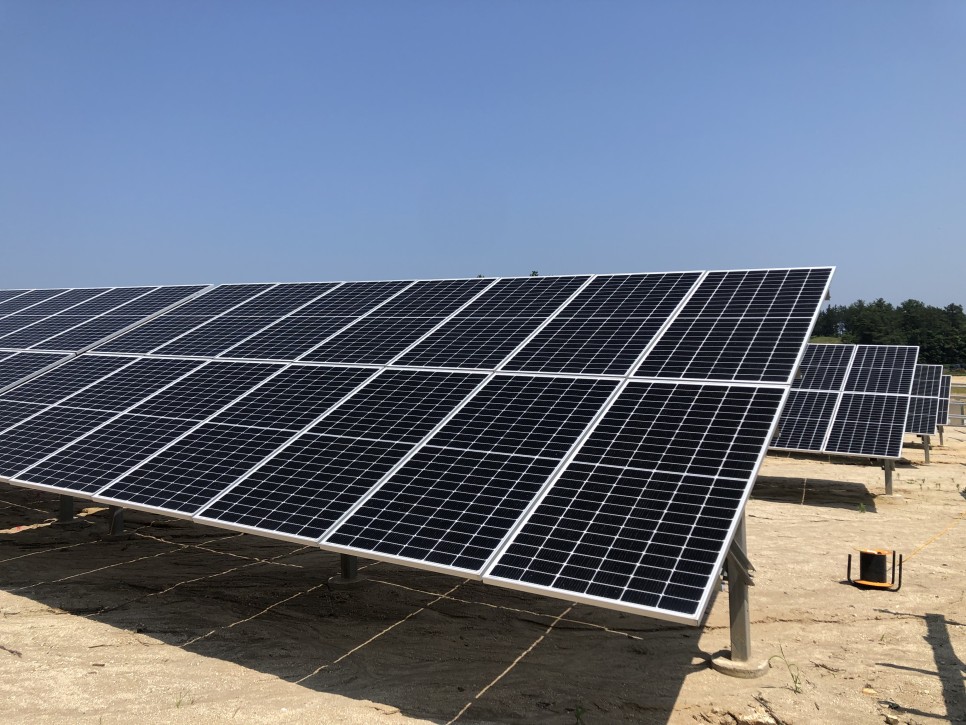

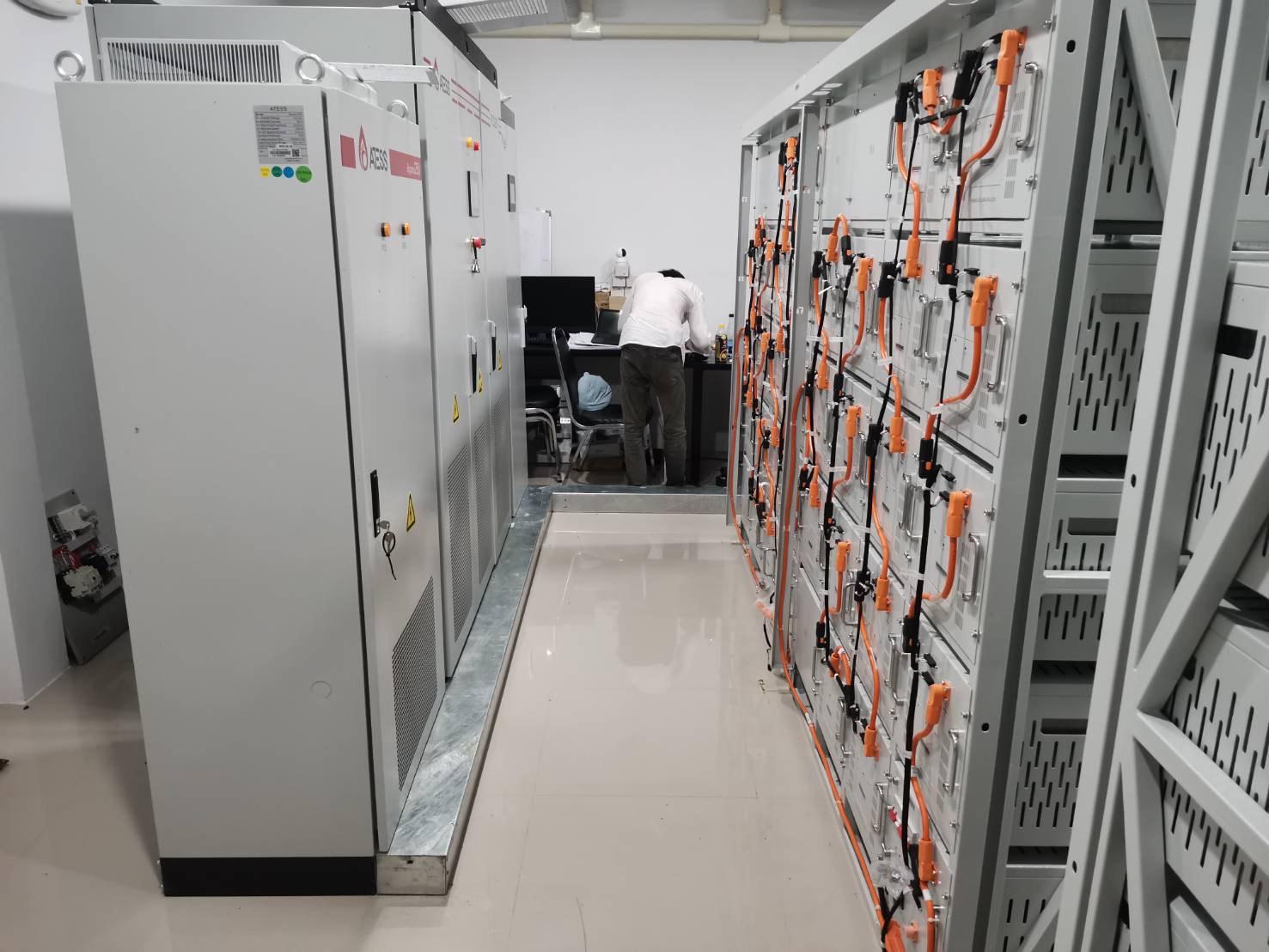

Our Projects
